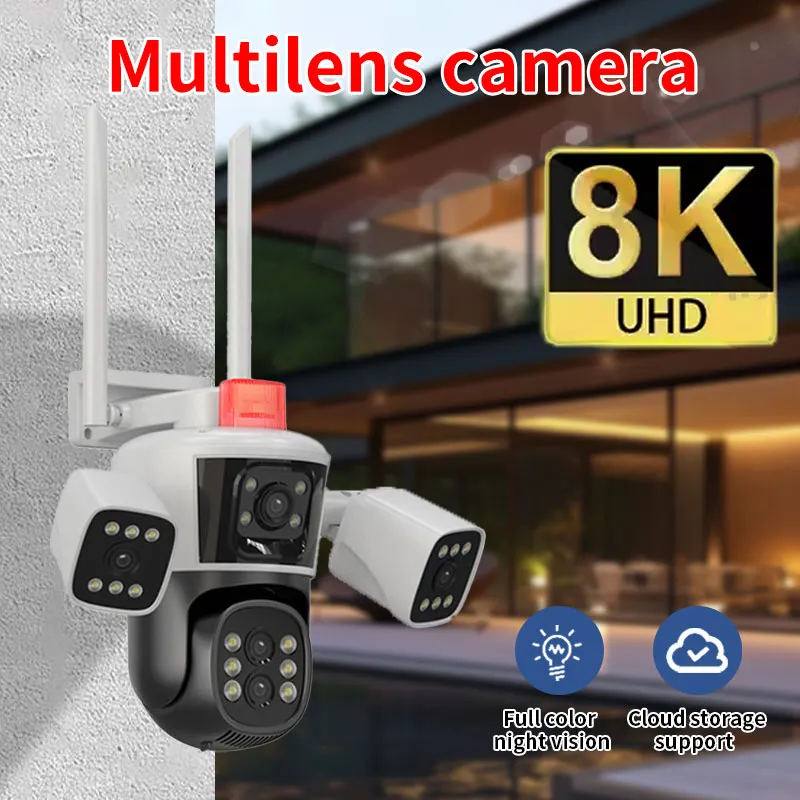

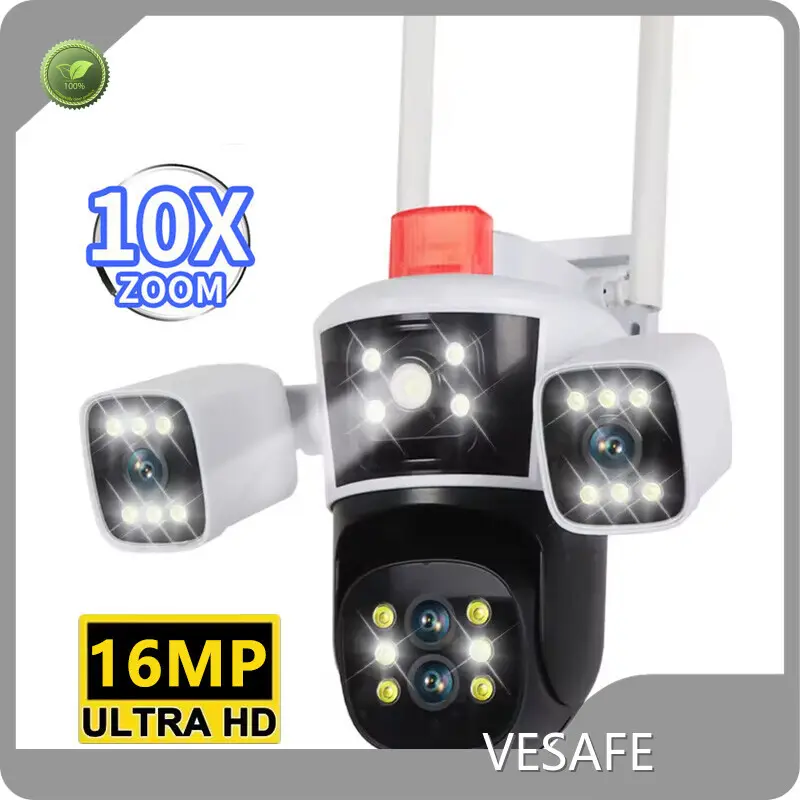

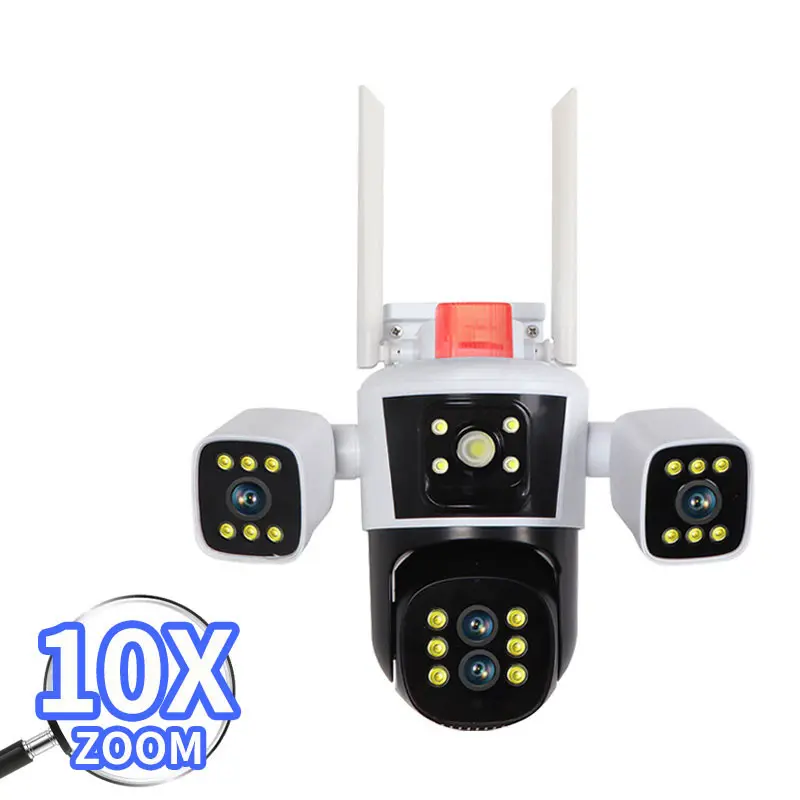

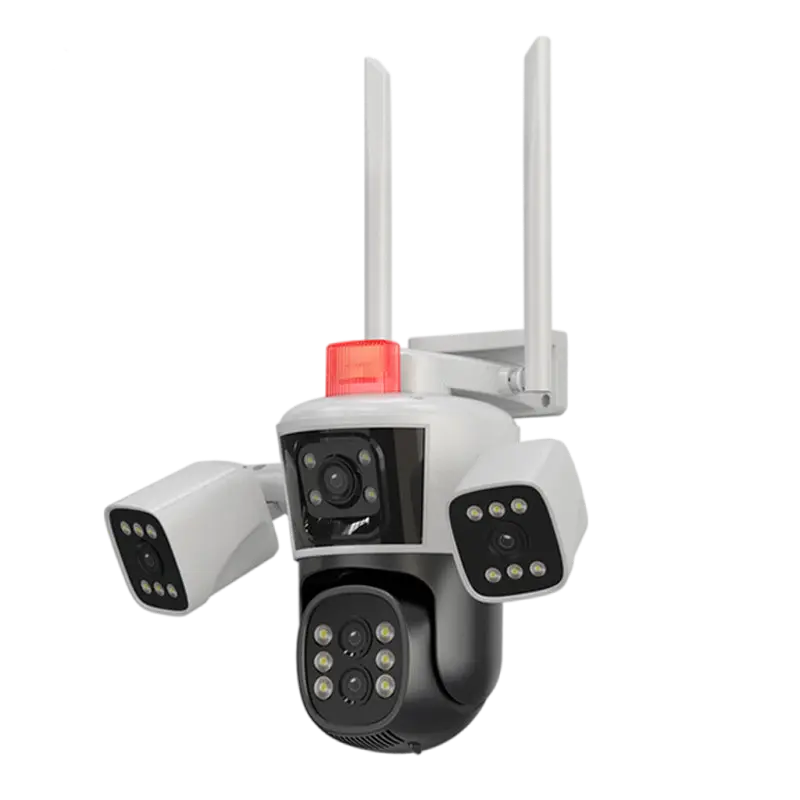

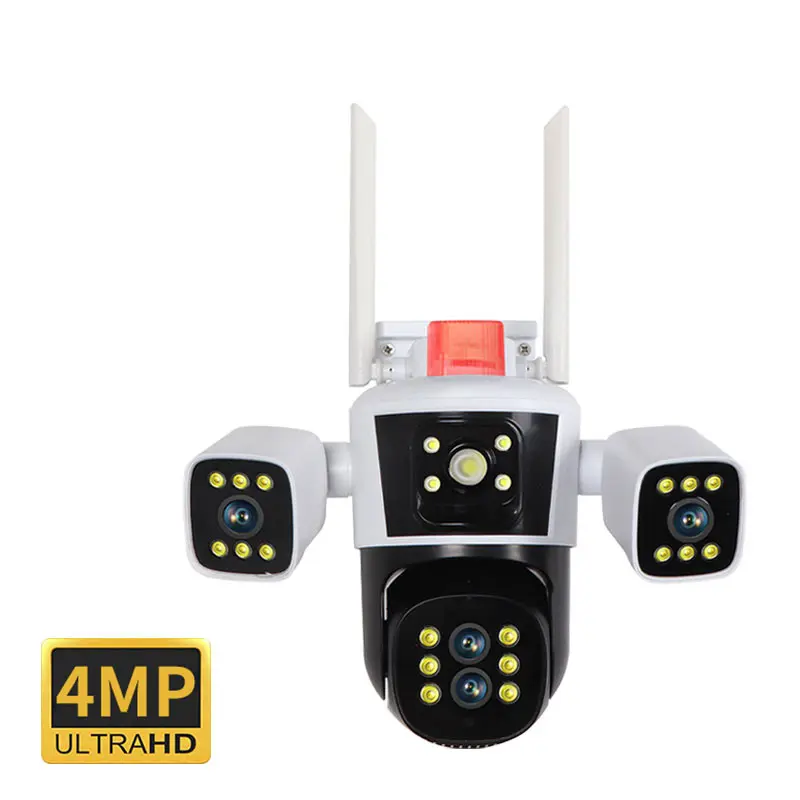

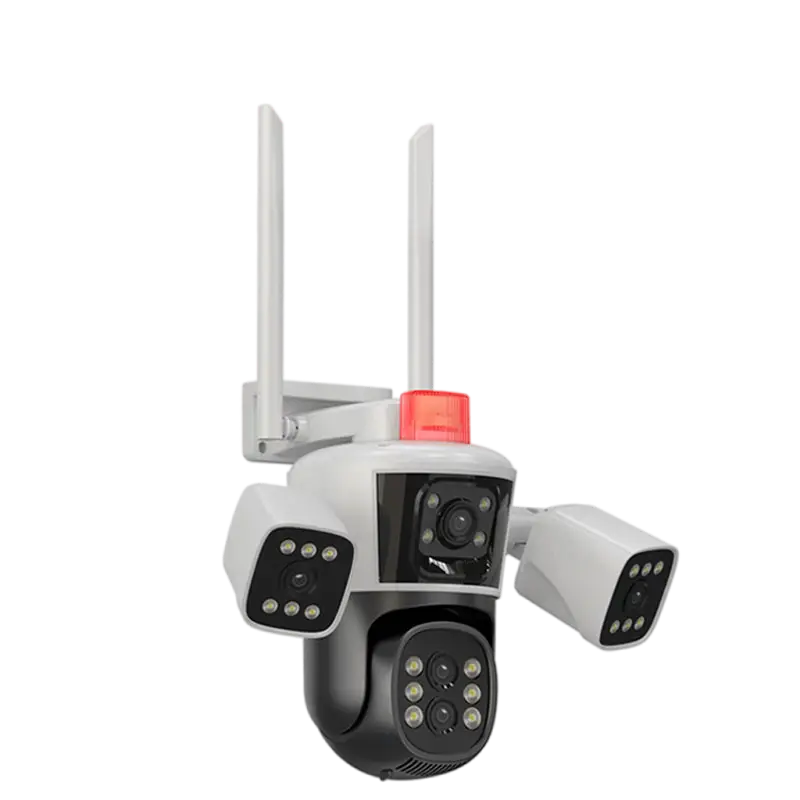

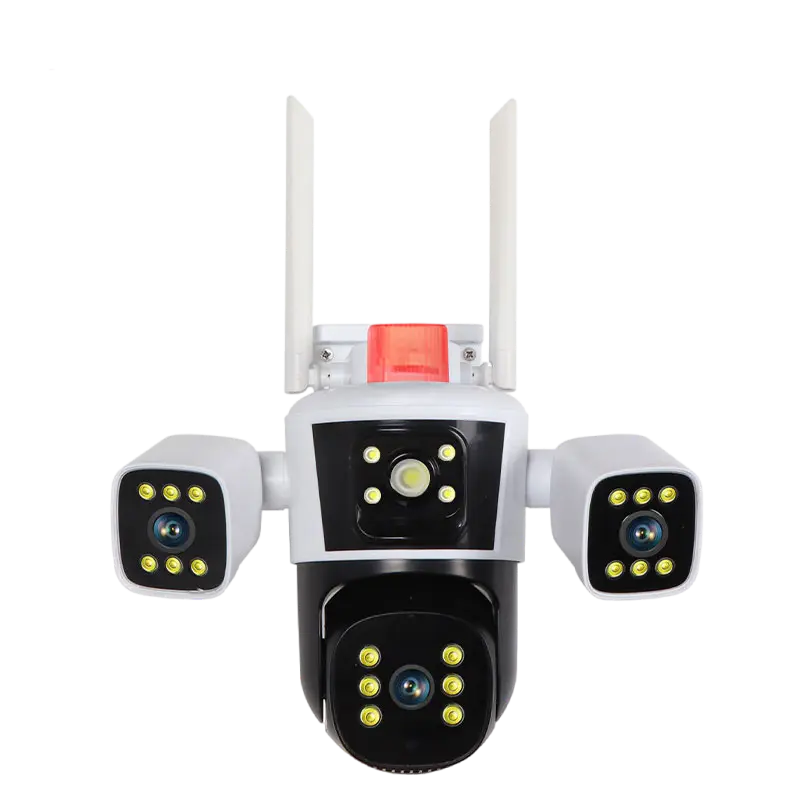

Product details of the poe ip camera system
Product Information
VESAFE poe ip camera system is made of the materials that fully meet with the rigorous product safety standards. The product has been tested on various quality parameters and been approved to be excellent in many respects such as performance, durability, etc. We will provide humanized outer packing for poe ip camera system.
Product Specifications
Model number | Q839 |
edition | WIFI |
APP | IPC360-Home |
Contour material | 3.5 "spherical, high strength plastic housing |
processor | T31 |
Sensor type | 1/3 CMOS |
Minimum illumination | 5Lux @(F2.0AGC ON) ,2.3 Lux with IR; |
shutter | Shutter adaptive |

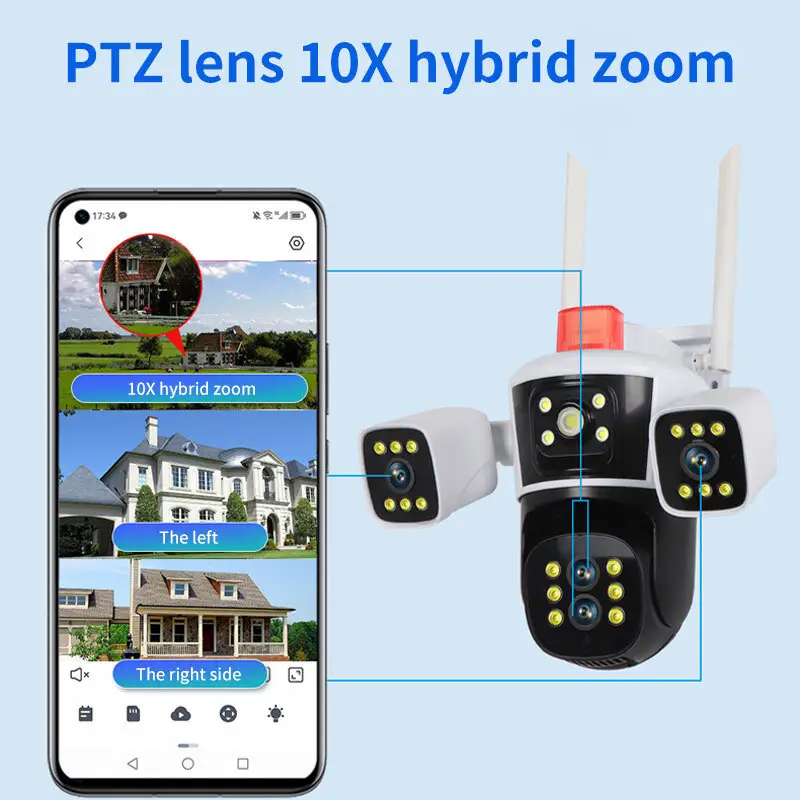

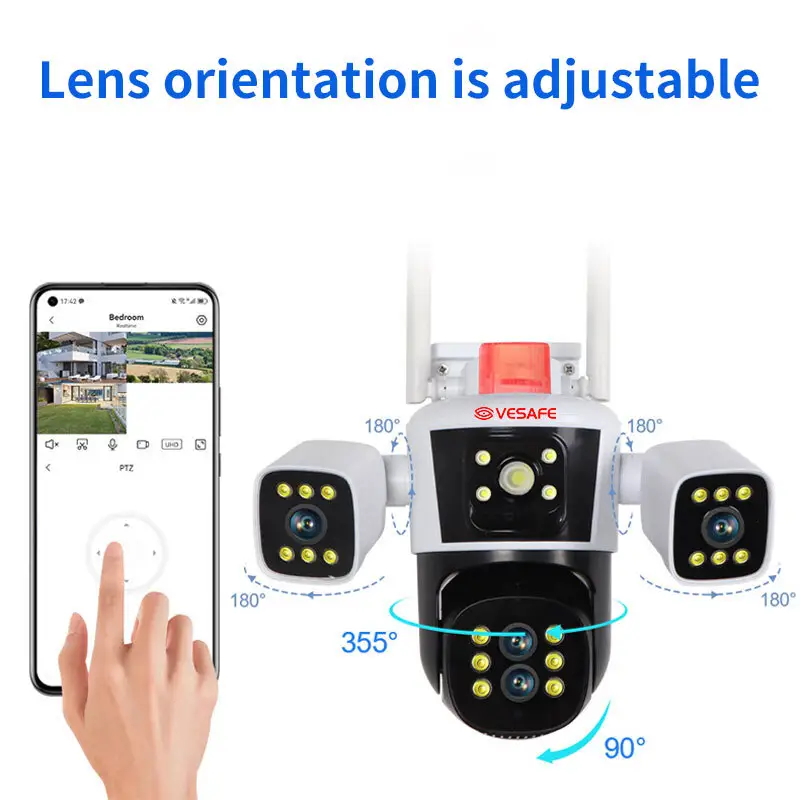

Head Angle | Horizontal 0°-355°, vertical 0°-90° |
Lens interface type | M12 |
Day-night switching mode | Automatic, ICR infrared filter type |
Infrared irradiation distance | 30 m (varies by environment) |
Digital noise reduction | 2D/3D digital noise reduction |
Wide dynamic range | Digital wide dynamic |
Video compression standard | Smart H.264 Ultra Low bit stream |
Video compression bit rate | Rate adaptive |
Audio compression standard | G.711a/k8 |
Audio compression bit rate | Rate adaptive |
Audio mode | Simplex bidirectional |
Frame rate | 15 frames (day)/12 frames (night) |
Image setting | Mirror/flip |
Backlight compensation | support |

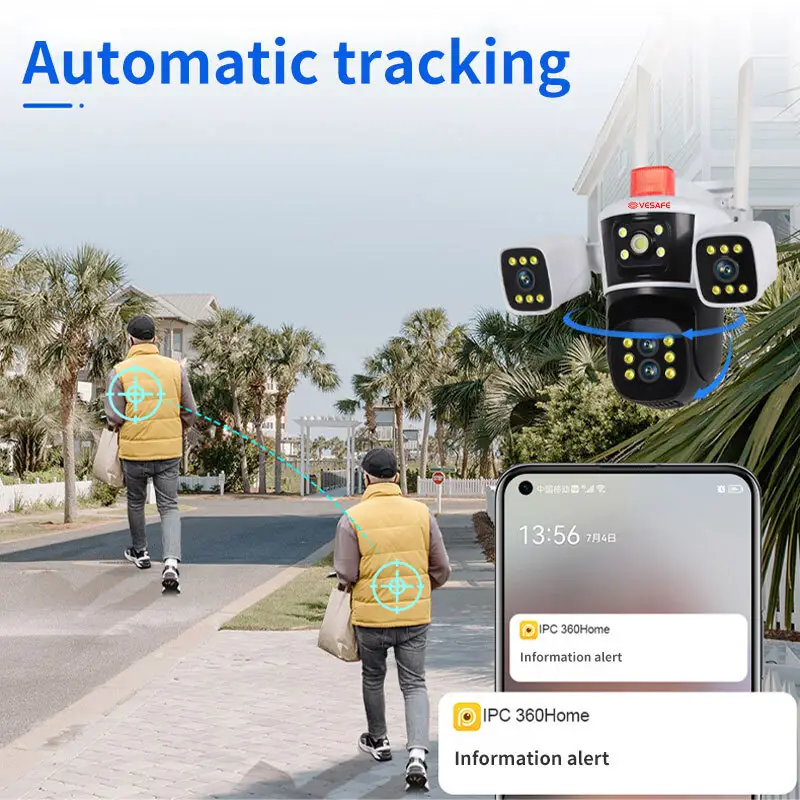

Intelligent alarm | Input: Humanoid detection/Motion tracking/Motion alarm Output: linkage light |
One-click configuration | Smart configuration, hotspot AP configuration, and manual addition |
Interface protocol | Cloud private protocol |
Memory interface | Micro SD card (maximum 128GB) or cloud storage |
Power interface | Φ5.5 round head power port |
Reset interface | Support tail-line button reset (only supported with tail-line) |
Wired network port | RJ45 network port (10/100M adaptive) |
Wireless standard | 802.11b/g/n |
frequency | 2.4 GHz |
Channel bandwidth | Support 20MHz |
secure | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
Transmission rate | 11b::11Mbps,11g :54Mbps,11n :150Mbps |
Cloud service | Puwei Video Cloud PDES cloud encryption |
Cloud storage | Puwei video cloud |
Operating temperature and humidity | -10℃~50℃, 10%~90 (no condensation) |
Power supply | DC12V-2A±10% |
Box size | 25.5*23*17CM |
Box weight | 1.1KG |
