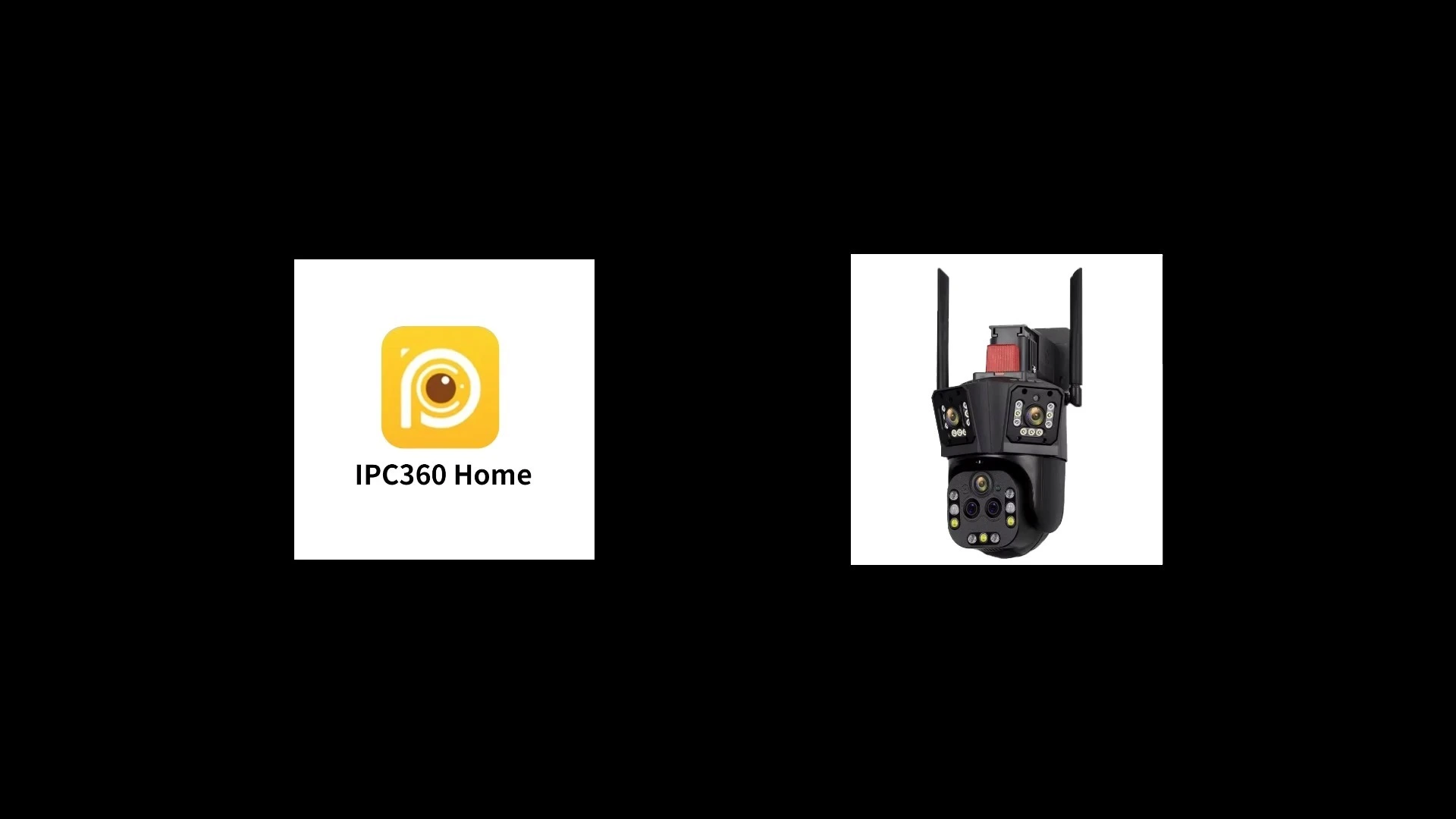

Security 5 Lens 20MP 10K 20X Zoom IP CCTV Camera
Outdoor Security Camera 20MP 10K HD Five Lens Three Screens 20X Zoom Smart Wifi PTZ CCTV Network IP Camera :
• 10K 20MP HD 20x zoom PTZ camera.
• Five lenses three screens, ultra-wide Angle + 20x zoom to achieve clear monitoring near and far.
• Dual light source design, built-in infrared light + white light, night vision infrared and night vision full color can be set.
• Pan&Tilt: horizontal 0~355 degrees, vertical 0~90 degrees.
• 2.4G WIFI + RJ45 network port for Internet access.
• Support TF storage and cloud storage (free one month cloud storage).
• Two-way voice intercom, two-way video synchronous recording and playback.
• Humanoid detection/vehicle detection/pet detection/other detection (need to open cloud storage).
• Automatic tracking/movement alarm, alarm output sound and light linkage.
• AI intelligent algorithm to achieve video 3D positioning and continuous tracking of target alarms.
• Support Android/IOS APP remote management (IPC360 Home).
• Power supply DC 12V.
| Model number | Q325 | |
| edition | WIFI | |
| APP | IPC360-Home | |
| pixel | 4MP(Five shots) | |
| Contour material | 3.5 "spherical, high strength plastic housing | |
| processor |
T31 | |
| Sensor type |
1/3 CMOS | |
| On camera | 4mm+4mm | |
| Zoom in | 6mm+16mm+25mm | |
| Minimum illumination | 5Lux @(F2.0AGC ON) ,2.3 Lux with IR； | |
| shutter | Shutter adaptive | |
| Head Angle | Horizontal 0°-355°, vertical 0°-90° |
|
| Lens interface type | M12 | |
| Day-night switching mode | Automatic, ICR infrared filter type | |
| Infrared irradiation distance | 100 m (varies by environment) | |
| Digital noise reduction | 2D/3D digital noise reduction | |
| Wide dynamic range |
Digital wide dynamic | |
| Video compression standard |
Smart H.264 Ultra Low bit stream | |
| Video compression bit rate | Rate adaptive | |
| Audio and video cloud storage | Three 1080p synchronous storage, synchronization look back | |
| Real-time preview | Three-screen 1080p synchronous preview, | |
| Frame rate | 15 frames (day)/15 frames (night) | |
| Image setting | Mirror/flip |
|
| Backlight compensation | support | |
| Intelligent alarm | Input: Humanoid detection/Motion tracking/Motion alarm Output: linkage light | |
| One-click configuration | Smart configuration, hotspot AP configuration, manual addition, wired addition | |
| Interface protocol | Cloud private protocol |
|
| Cloud service | Puwei Video Cloud PDES cloud encryption | |
| Cloud storage | Puwei video cloud | |
| Operating temperature and humidity | -10℃~50℃, 10%~90 (no condensation) | |
| Power supply | DC12V-2A±10% | |
| Power dissipation |
<5W without night vision | |
| Box size | 25.5*18.5*16.5CM | |
| Box weight | 1.15KG | |
| Carton size | 55.5*51*53CM (18 units) | |
| Carton weight | 20.7KG | |
